QCM 6 MHz 14 mm Cr/Au Custom

10+ 5,70 $
50+ 5,30 $
100+ 4,80 $
Stock status: 20pcs

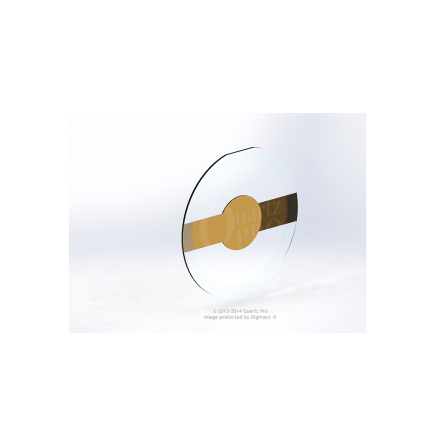

10 sensors per package. For use in film thickess monitors. Very reliable function due to good adhesion of electrodes. Long operational life time. Same large size electrodes on both sides.

Description

QUICK DATA for QCM 6 MHz 14 mm Cr/Au Custom





GENERAL

Item

Parameter

Value

1.0

Sensor design

Plano-Convex

2.0

Angle of cut

AT

3.0

Jig compability

Custom







ELECTRICAL

4.1

Nominal frequency

6.000 MHz

4.2

Center frequency

5.983 MHz

4.3

Frequency tolerance

+/- 7 KHz

4.4

Q-value

> 150 000

4.5

Shunt capacitance, C0

Typ. 19 pF

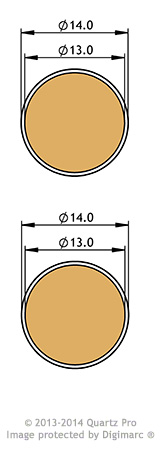

ELECTRODES

5.1

Front electrode diameter

13.0 mm

5.2

Front electrode material

Cr/Au,   Chromium / Gold

5.3

Back electrode diameter

13.0 mm

5.4

Back electrode material

Cr/Au,   Chromium / Gold

5.5

One sided contacting

No







MECHANICAL

6.1

Nominal blank diameter

14.0 mm

6.2

Crystal axes orientation

No

6.3

Surface appearance

Matte

6.4

Bevel

No



Datasheet

Document (1)

Specifications

Partno: QCM6140CrAu130-130-C
Stock status: 20pcs

Reviews

Add review
Rating (0)
