QCM 5 MHz 12.5 mm Ag/Al Sloan, Ulvac

10+ 5,70 $
50+ 5,10 $
100+ 4,80 $
Stock status: 0pcs
10 sensors per package. For use in film thickess monitors. Very reliable function due to good adhesion of electrodes. Long operational life time. Same large size electrodes on both sides.

Description

QUICK DATA for QCM 5 MHz 12.5 mm Ag/Al  Sloan, Ulvac



GENERAL

Item

Parameter

Value

1.0

Sensor design

Plano-Convex

2.0

Angle of cut

AT

3.0

Jig compability

Sloan, Ulvac







ELECTRICAL

4.1

Nominal frequency

5.000 MHz

4.2

Center frequency

5.000 MHz

4.3

Frequency tolerance

+/- 5 KHz

4.4

Q-value

> 150 000

4.5

Shunt capacitance, C0

Typ. 18 pF







ELECTRODES

5.1

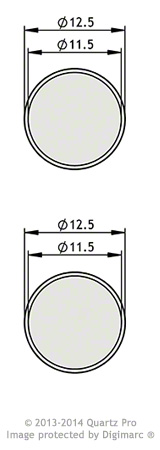

Front electrode diameter

11.5 mm

5.2

Front electrode material

Ag/Al,   Silver / Aluminium

5.3

Back electrode diameter

11.5 mm

5.4

Back electrode material

Ag/Al,   Silver / Aluminium

5.5

One sided contacting

No







MECHANICAL

6.1

Nominal blank diameter

12.5 mm

6.2

Crystal axes orientation

No

6.3

Surface appearance

Matte

6.4

Bevel

QCM Sesnors QCM5125AgAl115-115-S

Datasheet

Document (1)

Specifications

Partno: QCM5125AgAl115-115-S
