HOME » QCM Sensors » QCM 5 MHz 12.5 mm Cr/Au Sloan, Ulvac

QCM 5 MHz 12.5 mm Cr/Au Sloan, Ulvac

10+ 5,90 $
50+ 5,50 $
100+ 5,10 $
Stock status: 0pcs
10 sensors per package. For use in film thickess monitors. Very reliable function due to good adhesion of electrodes. Long operational life time. Same large size electrodes on both sides.

Description

QUICK DATA for QCM 5 MHz 12.5 mm Cr/Au  Sloan, Ulvac



GENERAL

Item

Parameter

Value

1.0

Sensor design

Plano-Convex

2.0

Angle of cut

AT

3.0

Jig compability

Sloan, Ulvac







ELECTRICAL

4.1

Nominal frequency

5.000 MHz

4.2

Center frequency

4.995 MHz

4.3

Frequency tolerance

+/- 7 KHz

4.4

Q-value

> 150 000

4.5

Shunt capacitance, C0

Typ. 18 pF

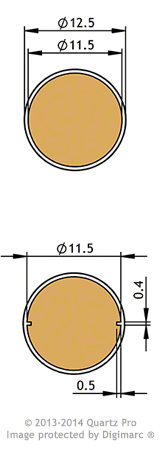

ELECTRODES

5.1

Front electrode diameter

11.5 mm

5.2

Front electrode material

Cr/Au,   Chromium / Gold

5.3

Back electrode diameter

11.5 mm

5.4

Back electrode material

Cr/Au,   Chromium / Gold

5.5

One sided contacting

No







MECHANICAL

6.1

Nominal blank diameter

12.5 mm

6.2

Crystal axes orientation

No

6.3

Surface appearance

Matte

6.4

Bevel

No



Datasheet

Document (1)

Specifications

Partno: QCM5125CrAu115-115-S2
Stock status: 0pcs

Reviews

Add review

Click the picture that shows the symbol 10 to send the message.

Rating (0)

Other products from the same product group

  • 10 sensors per package. For use in film thickess monitors. Very reliable function due to good adhesion of electrodes. Long operational life time. Two sided circumference contact back side electro...
    0pcs
    Partno: QCM6140CrAu130-064-I
    5,90 $

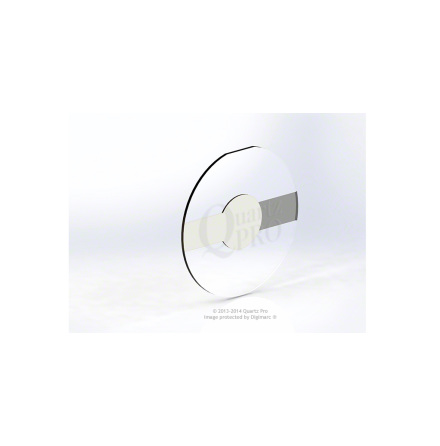

  • For use in film thickess monitors or liquid biosensing. Very reliable function due to good adhesion of electrodes. Long operational life time. Wrap over electrode for one sided contacting.
