HOME » Crystals » Quartz Crystal 8.666667 MHz SC HC-43/U 3rd overtone CL 25pF
Quartz Crystal 8.666667 MHz  SC HC-43/U 3rd overtone  CL 25pF Quartz Crystal 8.666667 MHz  SC HC-43/U 3rd overtone  CL 25pF

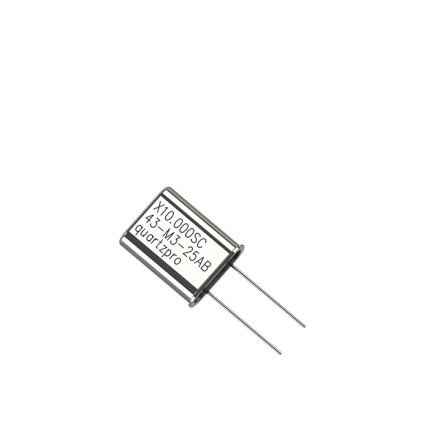

Quartz Crystal 8.666667 MHz SC HC-43/U 3rd overtone CL 25pF

Well documented / high performance Quartz Crystal with high Q value enabling low Phase Noise and low aging. For use in high performance and high reliability OCXO applications.
Partno:Article pictures: Price: Qty: Stock:
X8.6667SC-43-M3-25AB

0pcs

Specification for Crystal Part # X8.6667SC-43-M3-25AB


1. GENERAL

Item

Parameter

Condition

Value



Tolerance

Unit

Note

1.1

Angle of cut



SC









1.2

Mode of operation

Overtone

3rd









1.3

Circuit type

Series resonance











1.4a

Circuit type

Parallell resonance











1.4b

Load capacitance, CL



25



+/- 1

pF



1.5

Drive level, nom P

Nominal P

50



+/- 10 %

uW



1.6

Drive level, max P

Maximum P





+/- 10 %

uW



1.7

Package

HC-43/U









Height mm

Quartz Crystal 8.666667 MHz  SC HC-43/U 3rd overtone  CL 25pF

2. TEMPERATURE CHARACTERISTICS

Item

Parameter

Condition

Min.

Typ.

Max.

Unit

Note

2.1

Reference temperature, ref T



+88

+92

+98

˚C



2.2

Operating temperature range









˚C



2.3

Storage temperature range



-55



+105

˚C



















3. ELECTRICAL PARAMETERS

3.1

Motional resistance

R1

70

90

100

Ohm



3.2

Motional inductance

L1



2176



mH



3.2

Motional capacitance

C1

0.125

0.155

0.185

fF



3.3

Static shunt capacitance

C0

2.3

2.6

2.9

pF



3.4

Figure of merit

Q

800 000

 1 350 000

 1 500 000

-



3.5

Shunt inductance

L0



130



μH

Optional C0 cancellation

















4. FREQUENCY CHARACTERISTICS

4.1

Nominal frequency

@ ref T, CL and nom P



8.666 667



MHz



4.2

Frequency accuracy

@ ref T, CL and nom P

-1.0



+1.0

ppm



4.3

Drive level dependency, R1(P)

R1 max / R1 min





10

%

DLD sweep from 0.1 uW — nom P

4.4

Drive level dependency, f1(P)

Δf / f nom







ppm

DLD Sweep from 0.1uW — nom P

4.5

Long term stability (aging)

First year

-10



+10

ppb

After 30 days of continues operation

4.6

Long term stability (aging)

After first year







ppb

After 30 days of continues operation
