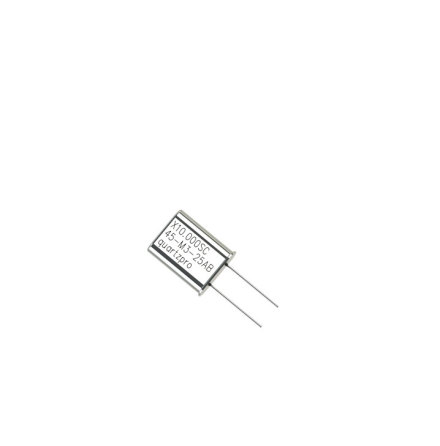

Quartz Crystal 40.000 MHz AT HC-45/U 3rd overtone CL 20pF

Well documented and cost effective Quartz Crystal for OCXO applications.
Partno:Article pictures: Price: Qty: Stock:
X40.000AT-45-M3-20AC

0pcs

Specification for Crystal Part # X40.000AT-45-M3-20AC


1. GENERAL

Item

Parameter

Condition

Value



Tolerance

Unit

Note

1.1

Angle of cut



AT









1.2

Mode of operation

Overtone

3rd









1.3

Circuit type

Series resonance











1.4a

Circuit type

Parallell resonance











1.4b

Load capacitance, CL



20



+/- 1

pF



1.5

Drive level, nom P

Nominal P

50



+/- 10 %

uW



1.6

Drive level, max P

Maximum P





+/- 10 %

uW



1.7

Package

HC-43/U









Height mm

Quartz Crystal 40.000 MHz  AT HC-45/U 3rd overtone  CL 20pF

2. TEMPERATURE CHARACTERISTICS

Item

Parameter

Condition

Min.

Typ.

Max.

Unit

Note

2.1

Reference temperature, ref T



+80

+85

+90

˚C



2.2

Operating temperature range









˚C



2.3

Storage temperature range



-55



+105

˚C



















3. ELECTRICAL PARAMETERS

3.1

Motional resistance

R1

7

12

25

Ohm



3.2

Motional inductance

L1



11



mH



3.2

Motional capacitance

C1

1.1

1.5

1.9

fF



3.3

Static shunt capacitance

C0

4.2

4.5

4.9

pF



3.4

Figure of merit

Q

110 000

170 000

200 000

-



3.5

Shunt inductance

L0



3.5



μH

Optional C0 cancellation

















4. FREQUENCY CHARACTERISTICS

4.1

Nominal frequency

@ ref T, CL and nom P



40.000 000



MHz



4.2

Frequency accuracy

@ ref T, CL and nom P

-5.0



+5.0

ppm



4.3

Drive level dependency, R1(P)

R1 max / R1 min





10

%

DLD sweep from 0.1 uW — nom P

4.4

Drive level dependency, f1(P)

Δf / f nom







ppm

DLD Sweep from 0.1uW — nom P

4.5

Long term stability (aging)

First year

-500



+500

ppb

After 30 days of continues operation

4.6

Long term stability (aging)

After first year







ppb

After 30 days of continues operation
